Off-road trailers have exploded in popularity, but most of them ask you to give up one thing in the name of going small and rugged: a real bathroom. The Encore RV ROG 12RK-FB sets out to fix exactly that — Encore RV calls it the first adventure trailer of its kind to feature a fully integrated, stand-up bathroom module, and it manages that while still fitting inside a standard 7-foot garage. At just under 18 feet long and a remarkably light 2,654-pound dry weight, the 12RK-FB is built to be towed almost anywhere and then dropped deep into the backcountry, pairing a convertible queen-size living space with a rear outdoor kitchen, serious off-grid power options, and that signature pop-up bathroom. With a base MSRP around $34,495, it lands squarely in the heart of the overland-trailer market — but with a feature set that’s genuinely hard to find anywhere else.

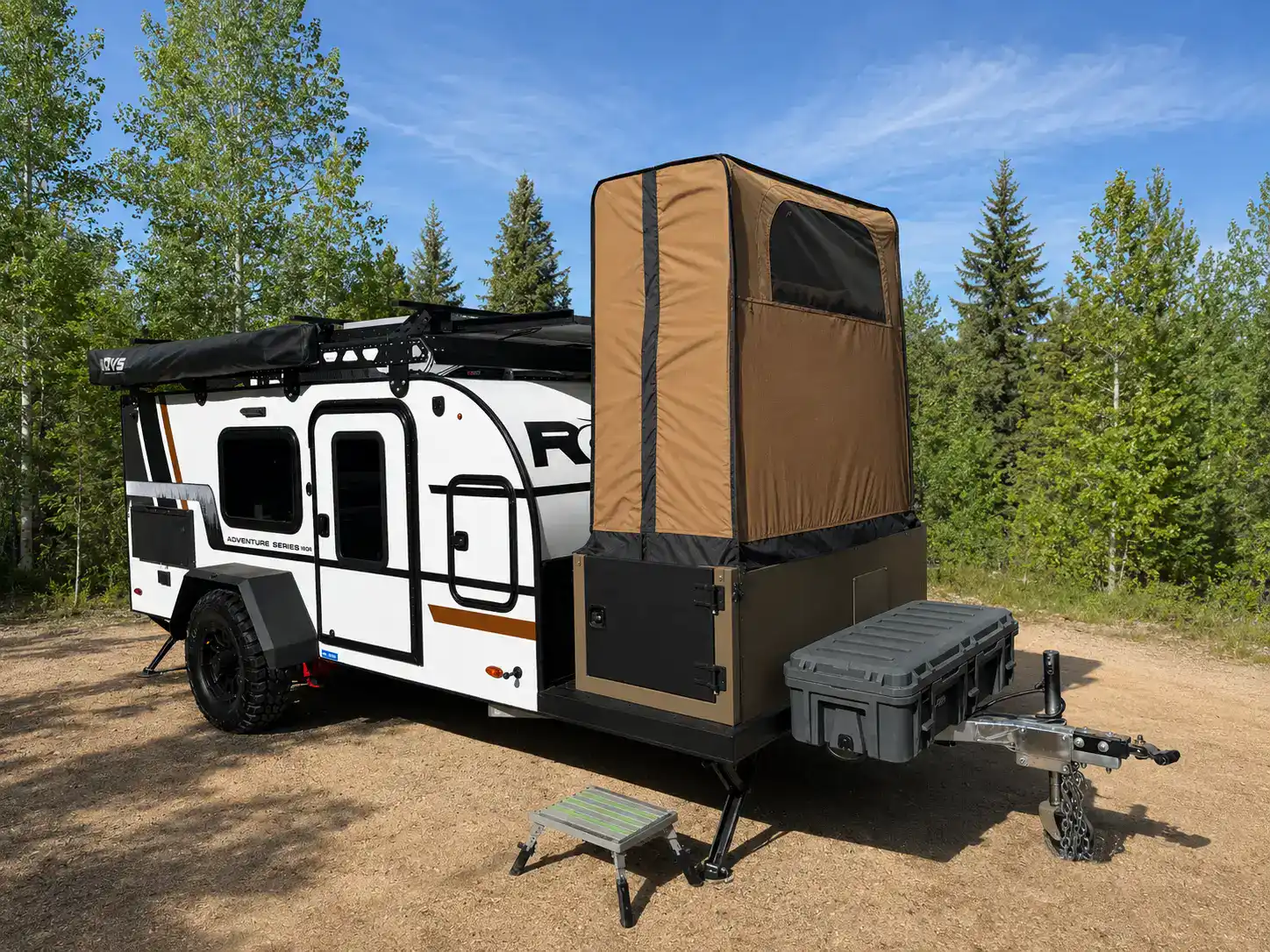

Encore RV ROG 12RK-FB off-road travel trailer parked in the forest with the rear bathroom module deployed
Images courtesy of Encore RV

A Garage-Friendly Off-Road Trailer Built to Disappear Into the Backcountry

The 12RK-FB measures 17′ 11-3/8″ long and 7′ 11″ wide, which is the whole point of its name’s compact proportions: it tucks neatly inside a standard 7-foot garage when you’re back home. Underneath, this is a serious trailer. Encore builds it with 100% wood-free construction using their Tri-Bond 360 technology, an all-aluminum chassis and frame, aluminum “Forever Cabinets,” and a one-piece Impact Guard roof. There’s nothing in the structure to rot, delaminate, or absorb water — a meaningful difference when your trailer spends its life bouncing down dusty forest roads and parked in the weather.

That wood-free build is also how Encore keeps the dry weight down to 2,654 pounds with a 4,400-pound GVWR, so it’s towable by a wide range of mid-size SUVs and trucks rather than demanding a full-size tow rig.

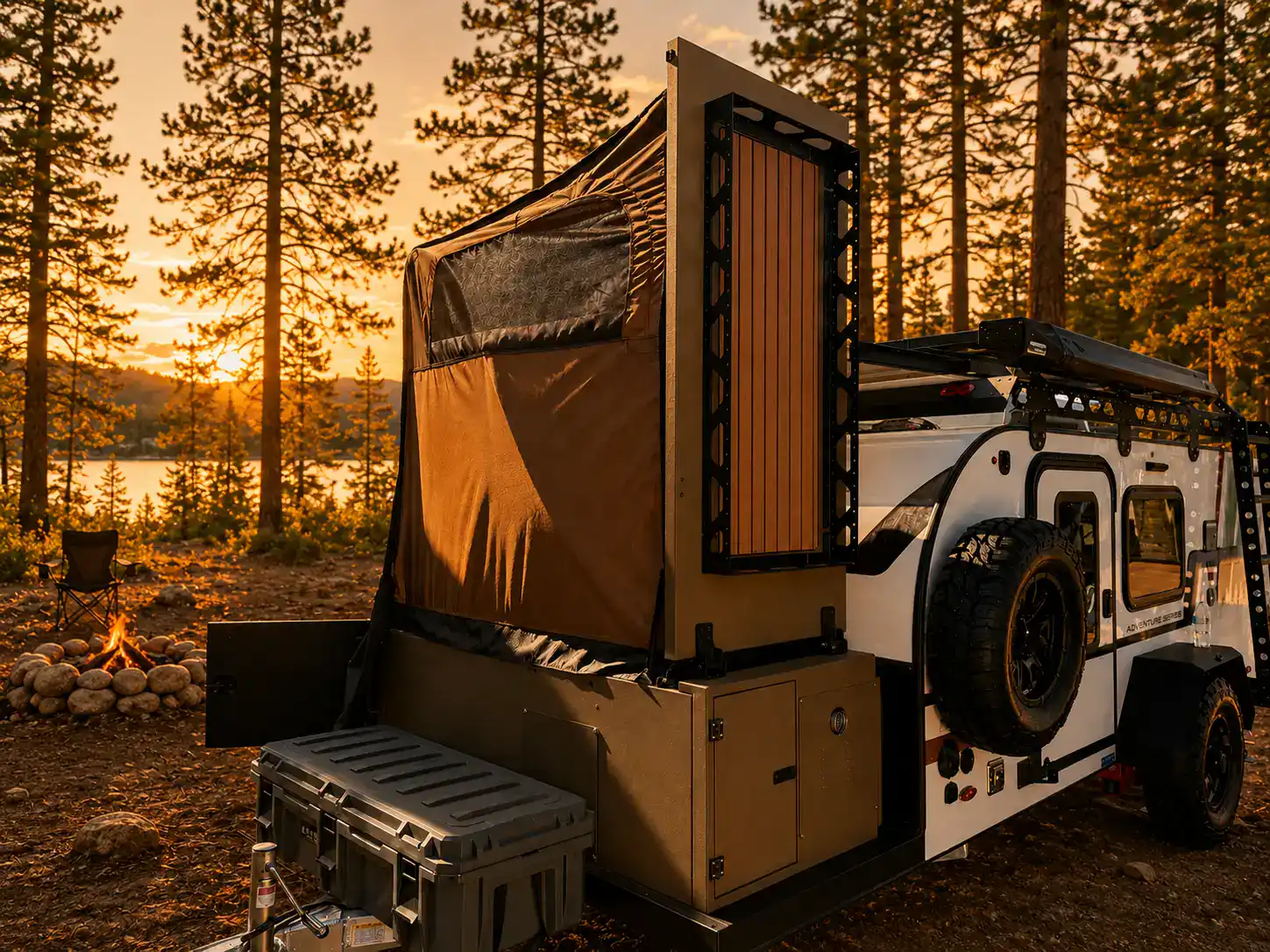

Encore RV ROG 12RK-FB camped lakeside at sunset with bathroom module and roof rack deployed
Image courtesy of Encore RV

The Headline Feature: A Stand-Up Bathroom That Deploys in Seconds

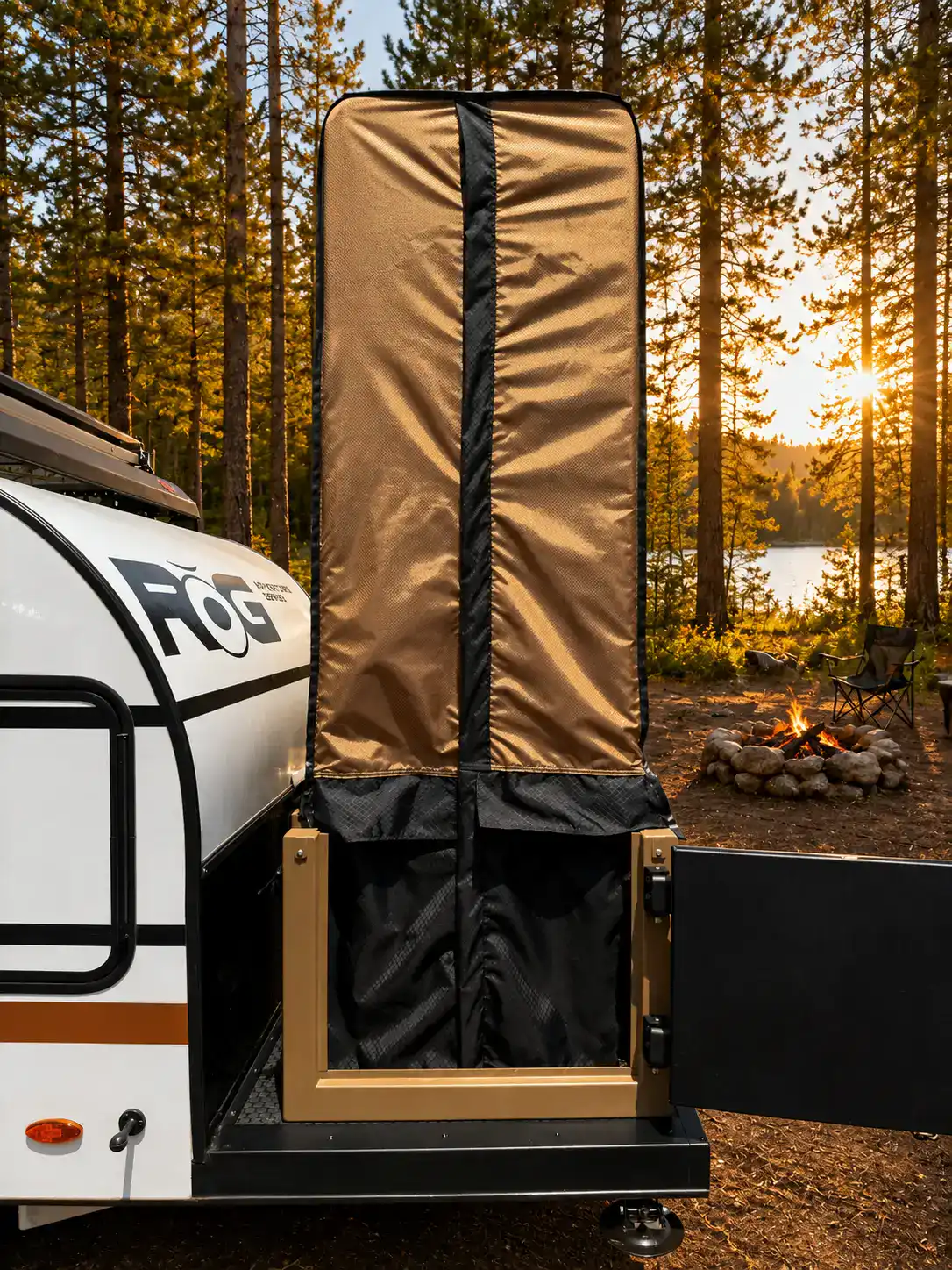

This is the reason the 12RK-FB exists. Most adventure trailers this size send you to a portable toilet under an awning, but the 12RK-FB carries a powder-coated aluminum bathroom module that folds flat for travel and pops up into a full stand-up enclosure in seconds. Rip-stop privacy panels with screened windows give you a genuinely private place to shower and use the toilet, and because it’s a hard-sided module rather than a flimsy pop-up tent, it stands up to wind and weather far better than the fabric solutions you’ll see on competing trailers.

The folded powder-coated aluminum stand-up bathroom module on the Encore RV ROG 12RK-FB
Image courtesy of Encore RV

Step Inside the Bath Module

Once deployed, the bathroom floor is a molded pan with a slip-resistant EVA teak-look surface — the kind of grippy, marine-style flooring you’d want when it’s wet underfoot. Waterproof LED lighting means you’re not fumbling in the dark, and a 12V power port is built right in for a fan, a charger, or a rechargeable lantern. The screened windows let the breeze (and the view) in while keeping the bugs out.

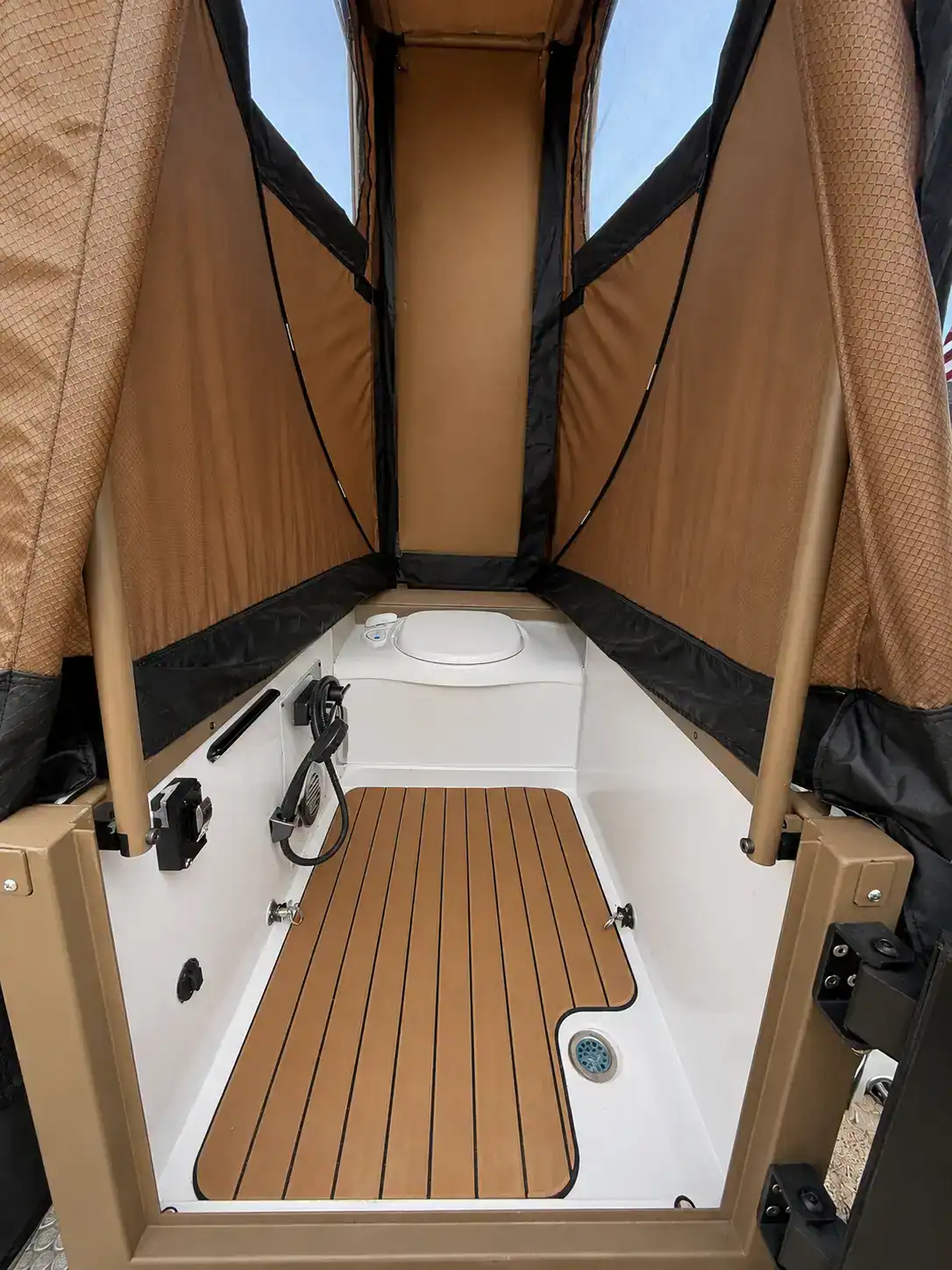

Inside the Encore RV ROG 12RK-FB stand-up bathroom module showing the slip-resistant EVA floor and toilet
Image courtesy of Encore RV

Encore even thought about the little touches. There’s a shelf for your toiletries, and the staging shots lean into the brand’s playful Bigfoot mascot with a carved soap dish and adventure-grade grooming gear — a small but telling sign that this is a company that wants the experience to feel considered, not improvised.

Toiletry shelf inside the 12RK-FB bathroom module with a Bigfoot soap dish and grooming supplies
Image courtesy of Encore RV

And then there’s the view. Unzip a screened panel and your morning routine comes with a front-row seat to the lake and the sunrise — the kind of detail that turns a functional necessity into one of the best parts of the trip.

Sunset lake view through the screened window of the Encore RV ROG 12RK-FB bathroom module
Image courtesy of Encore RV

A Convertible Living Space: Futon by Day, Queen Bed by Night

The cabin is anchored by a true queen futon that does triple duty. During the day it works as a recliner-style couch for lounging out of the weather; flatten it out and you’ve got a full 60″ x 80″ queen sleeping surface. It’s a smart use of a small footprint — instead of a fixed bed that eats the whole interior, you get a comfortable living area that converts when it’s time to turn in.

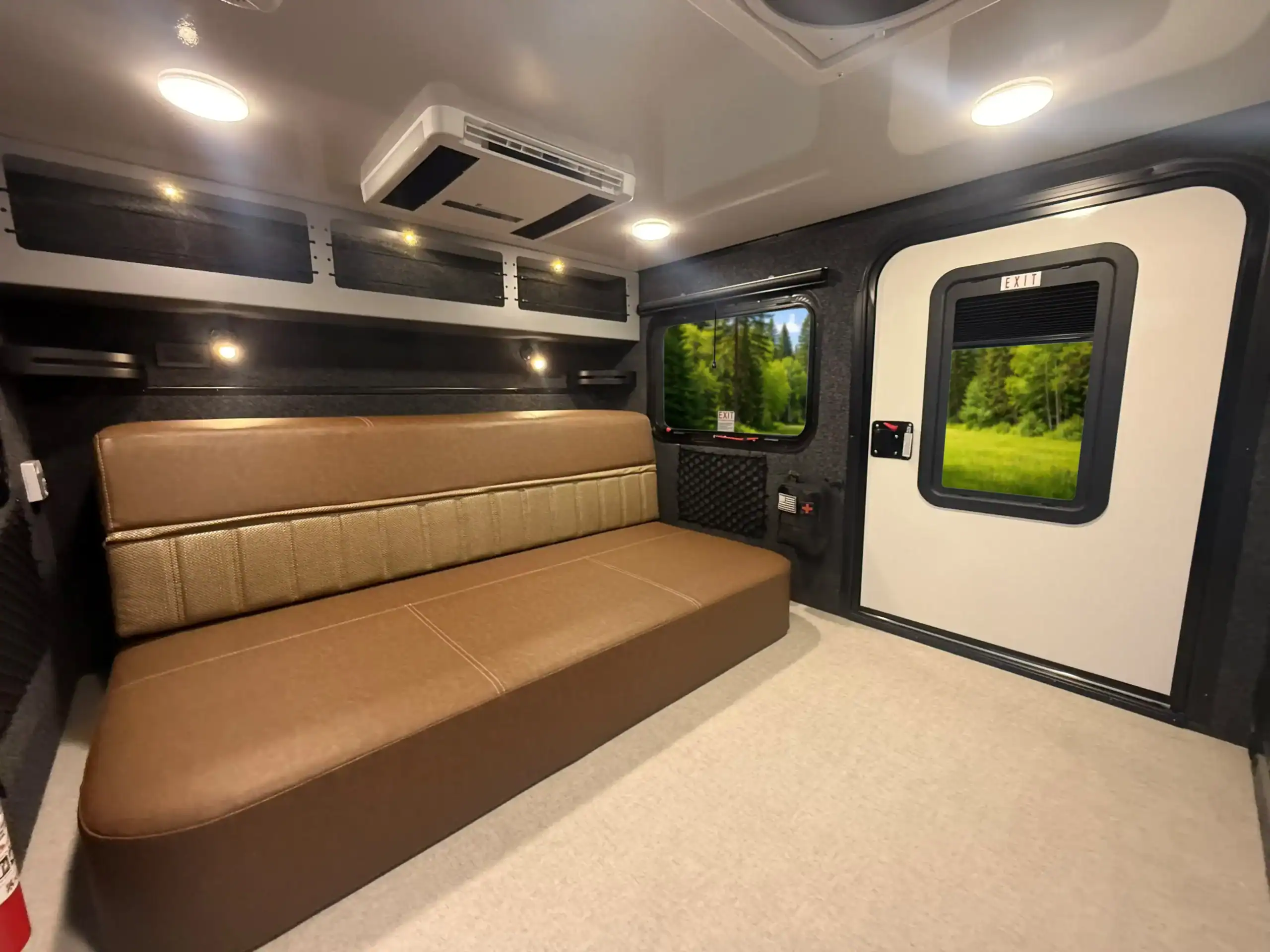

The convertible futon couch inside the Encore RV ROG 12RK-FB in seating position
Image courtesy of Encore RV

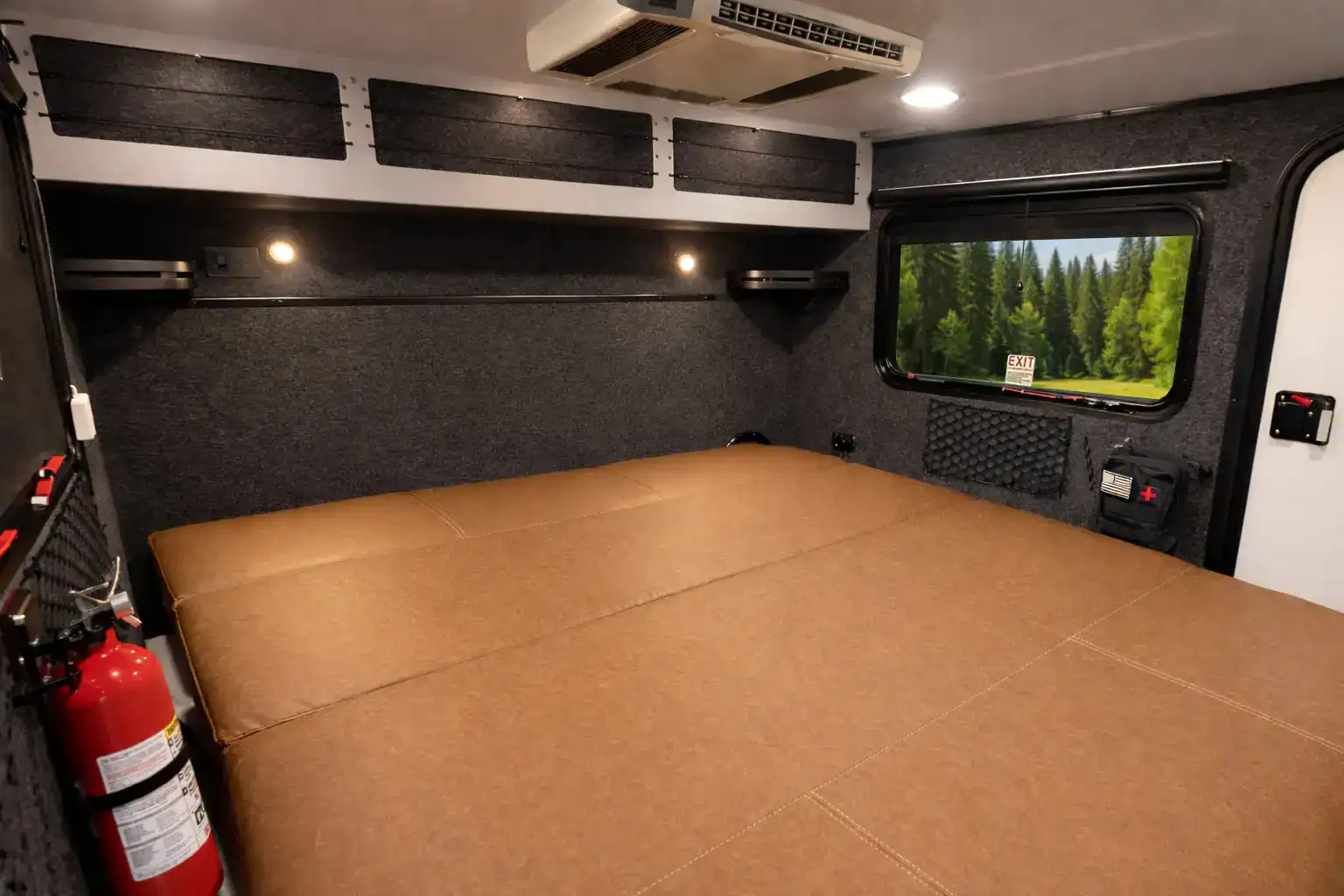

Surrounding the futon, Encore packs in a surprising amount of storage: overhead cabinets, recessed shelving, wall-mounted storage nets on both the roadside and curbside, a rear-wall corner shelf, and a closet that also houses the furnace. A recessed cabinet is even pre-wired for the optional 12V 32″ LED smart TV.

The Encore RV ROG 12RK-FB interior with the futon laid flat into a queen bed
Image courtesy of Encore RV

The Rear Outdoor Kitchen

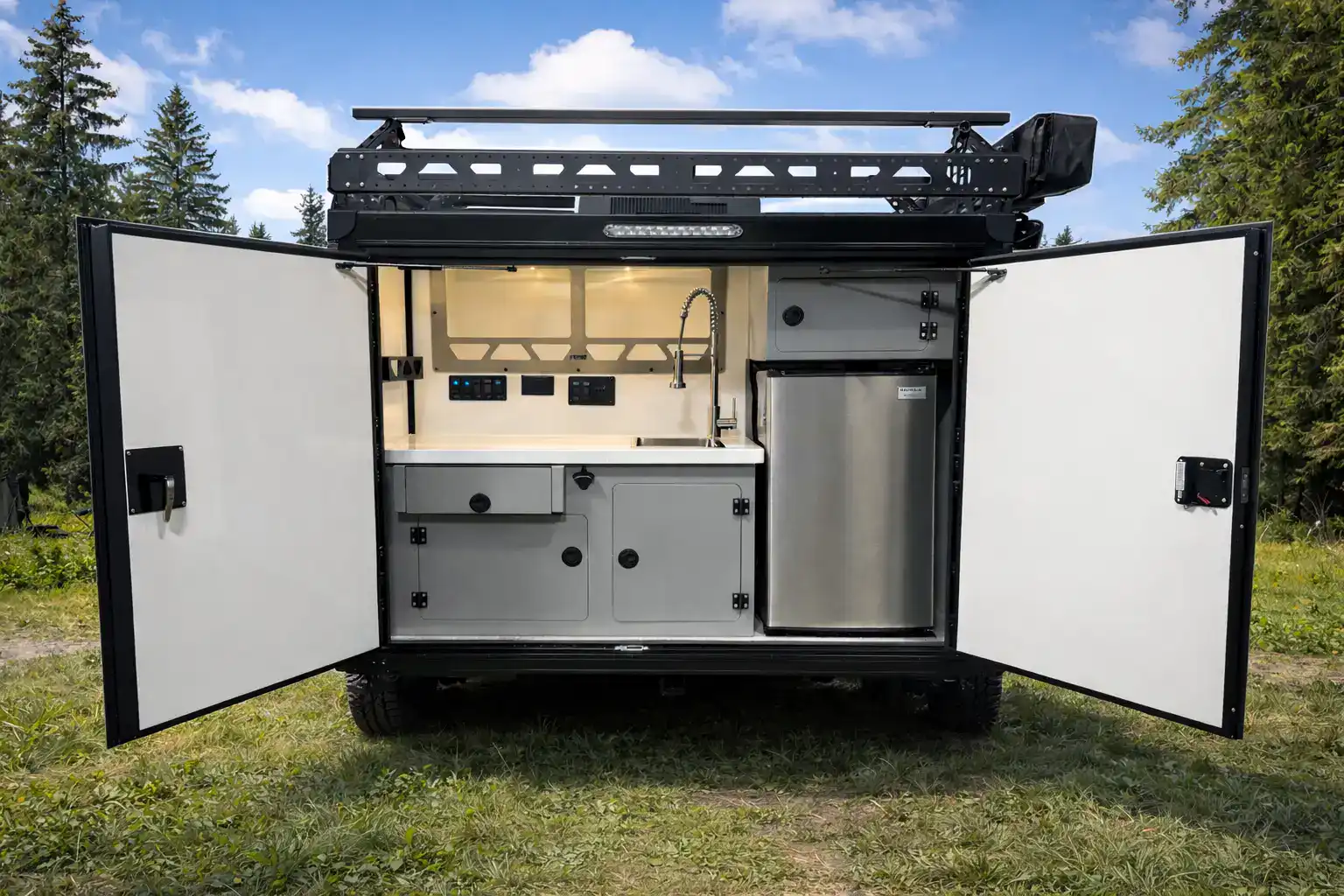

Cooking happens outside on the 12RK-FB, which keeps heat, smells, and mess out of your sleeping space — a layout overlanders tend to love. The rear galley features solid-surface countertops, a sink with a faucet, base-cabinet storage, a spice rack, and LP quick connects so you can run your stove or a fire pit off the trailer’s propane.

The rear outdoor kitchen on the Encore RV ROG 12RK-FB with solid-surface counters and sink
Image courtesy of Encore RV

The cooktop itself rides on a slide-out tray that tucks away when you’re on the move and pulls out to a comfortable working height at camp. It’s a clean solution that protects the burners during travel and gives you real counter-adjacent cooking space when you arrive.

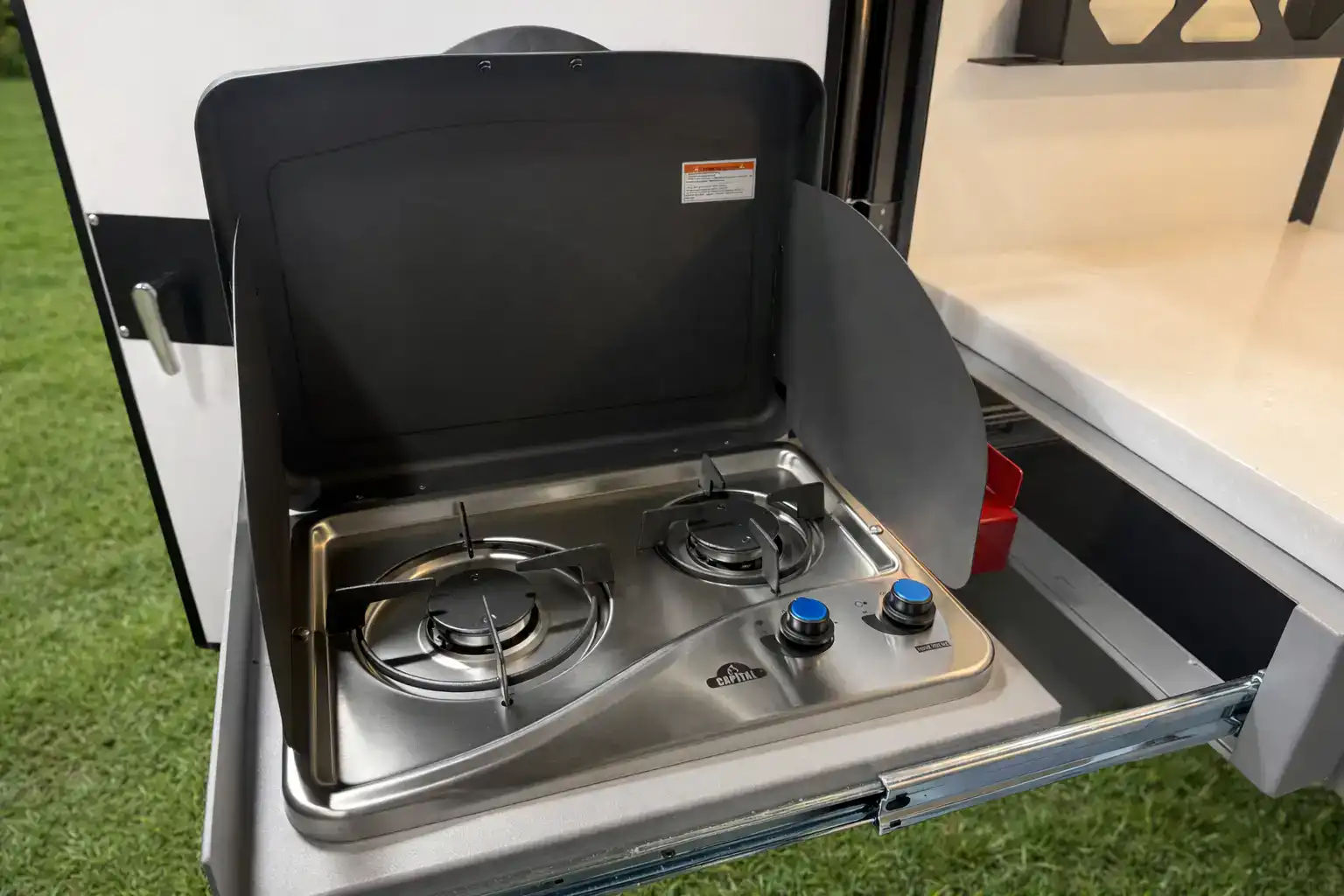

The slide-out stove on the Encore RV ROG 12RK-FB rear outdoor kitchen
Image courtesy of Encore RV

Keeping everything cold is a 3.3-cubic-foot 12V refrigerator — efficient enough to run off the trailer’s batteries and solar, so your food stays chilled even when you’re days from a hookup.

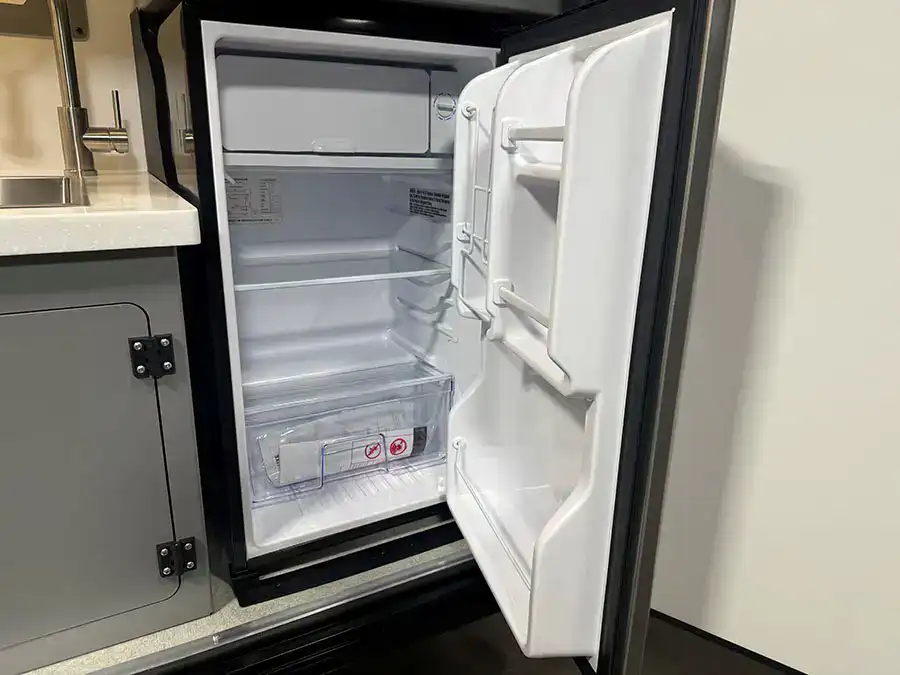

The 3.3 cubic foot 12V refrigerator in the Encore RV ROG 12RK-FB
Image courtesy of Encore RV

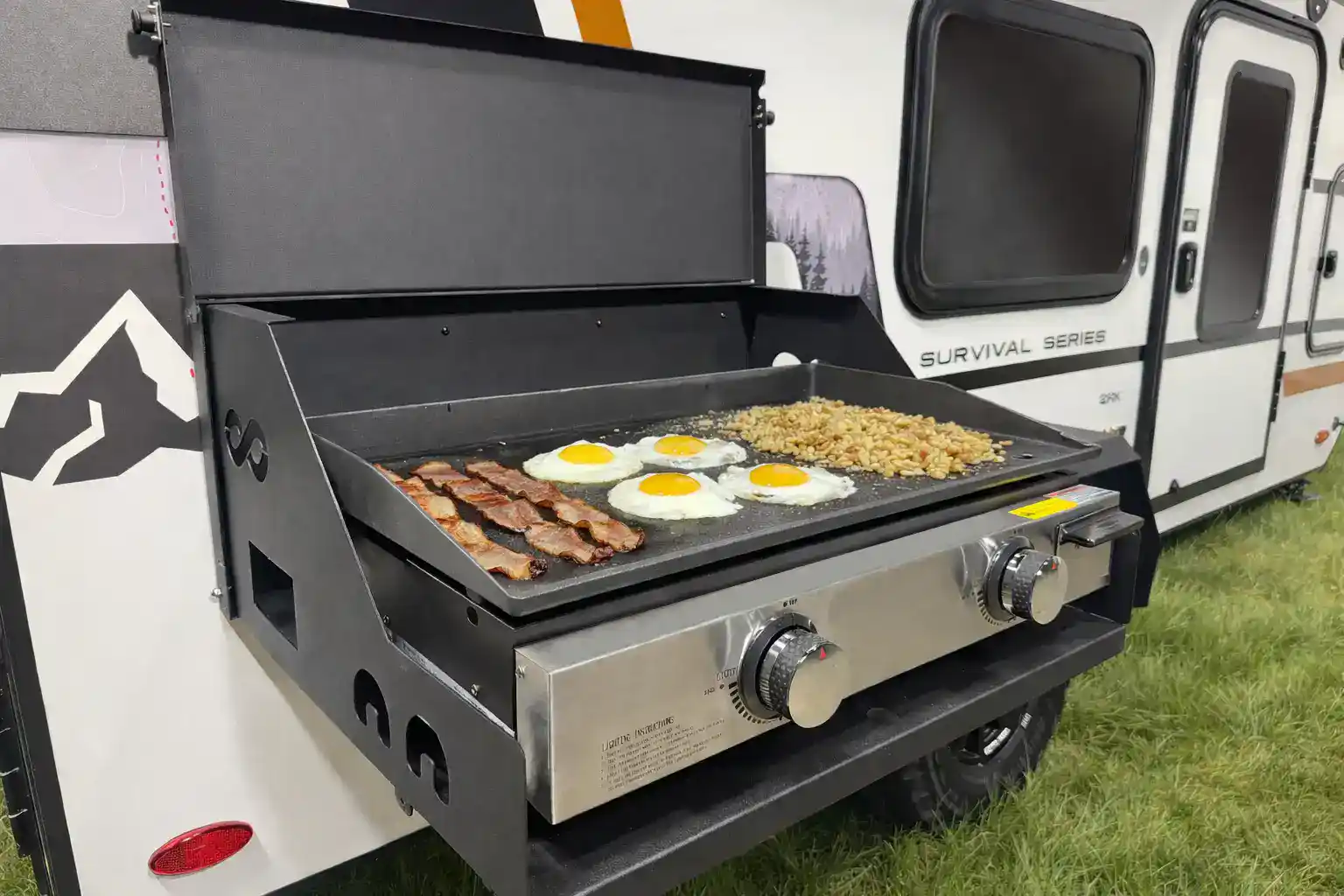

There’s also a flip-down griddle mount that turns into a breakfast station with the optional 25″ two-burner griddle. Pancakes with a lakeside view is exactly the kind of morning this trailer is built for.

Breakfast cooking on the flip-down griddle station of the Encore RV ROG 12RK-FB
Image courtesy of Encore RV

Built for Going Off-Grid

The 12RK-FB is engineered to keep you out there. An on-demand 42,000 BTU water heater delivers essentially endless hot water for that pop-up shower, while an 18,000 BTU ducted LP furnace keeps the cabin warm when the temperature drops. Fresh water capacity is 43 gallons.

Power is where it gets serious. The Power-Up package adds an MPPT solar controller, a DC-to-DC charger, a 100aH heated lithium battery on a custom tray that holds up to four batteries, a 200-watt solar panel with shade technology, and a 120-amp waterproof Anderson connector. Step up to the Power+Plus package and you get a 3,000-watt inverter with auto transfer switch, three 100aH lithium batteries (400aH total), two 200-watt panels, and a slide-out solar panel system for chasing the sun. A roof rack system up top carries gear, panels, and a rooftop tent.

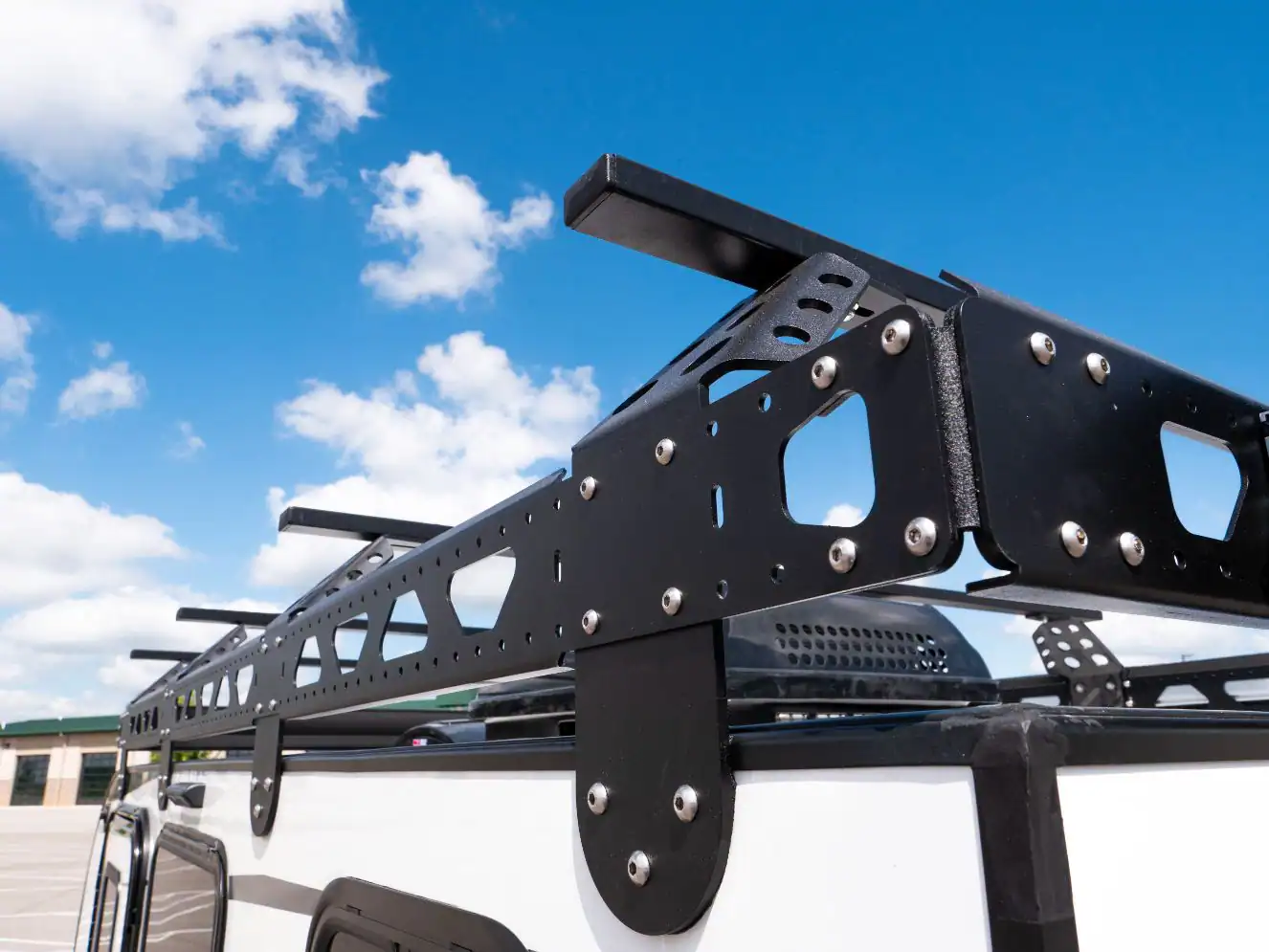

The roof rack system on top of the Encore RV ROG 12RK-FB for carrying gear and solar
Image courtesy of Encore RV

Out front, a spare tire and LP carrier, a wind deflector, and an articulating Lock-n-Roll hitch (part of the Overland Package) round out the off-road hardware. Optional Timbren axle-less suspension and a 13,500 BTU low-profile roof A/C with heat pump are there for buyers who want to push into rougher terrain and hotter climates.

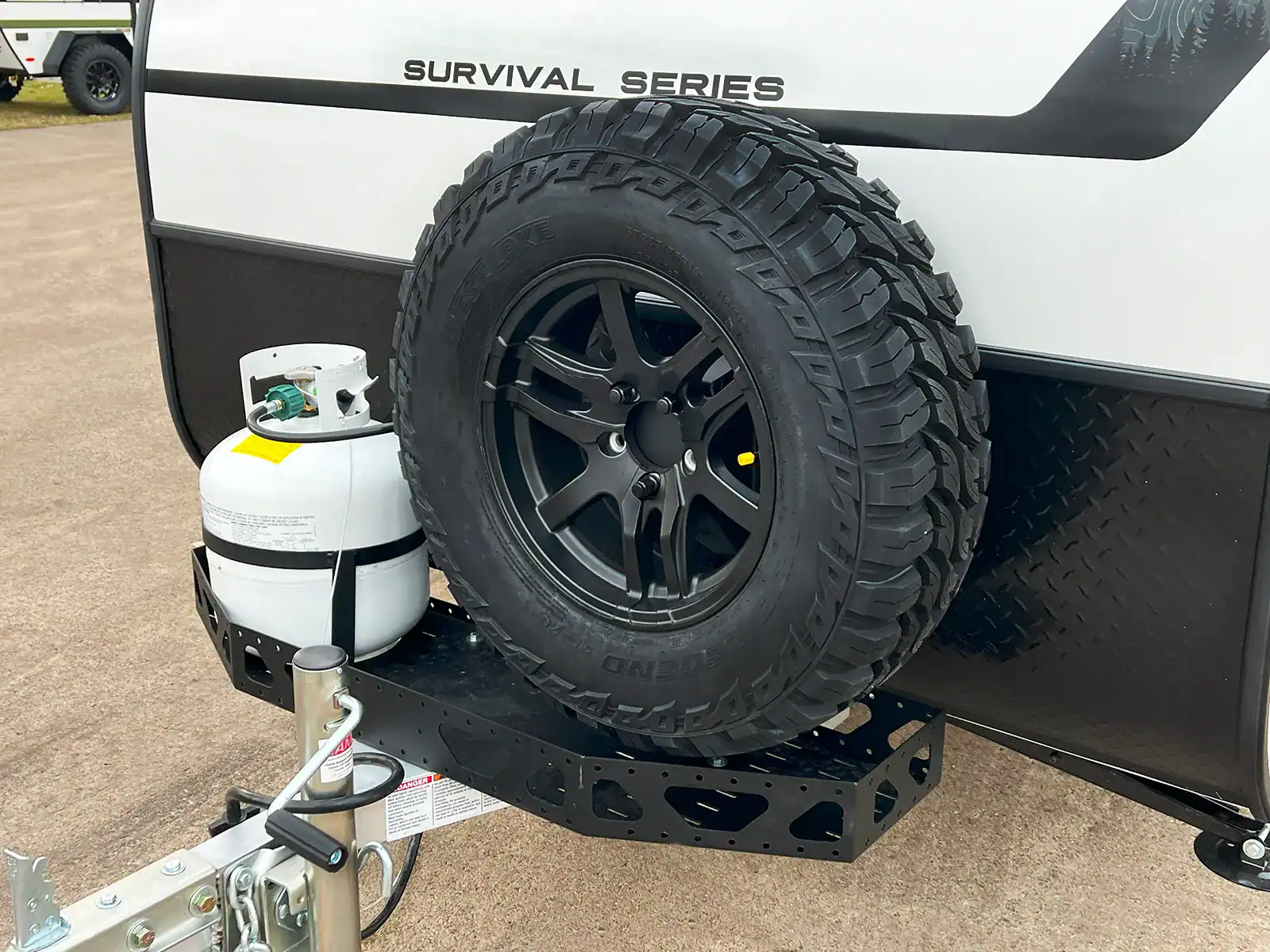

The front-mounted spare tire and LP carrier on the Encore RV ROG 12RK-FB
Image courtesy of Encore RV

The 12RK-FB Floor Plan

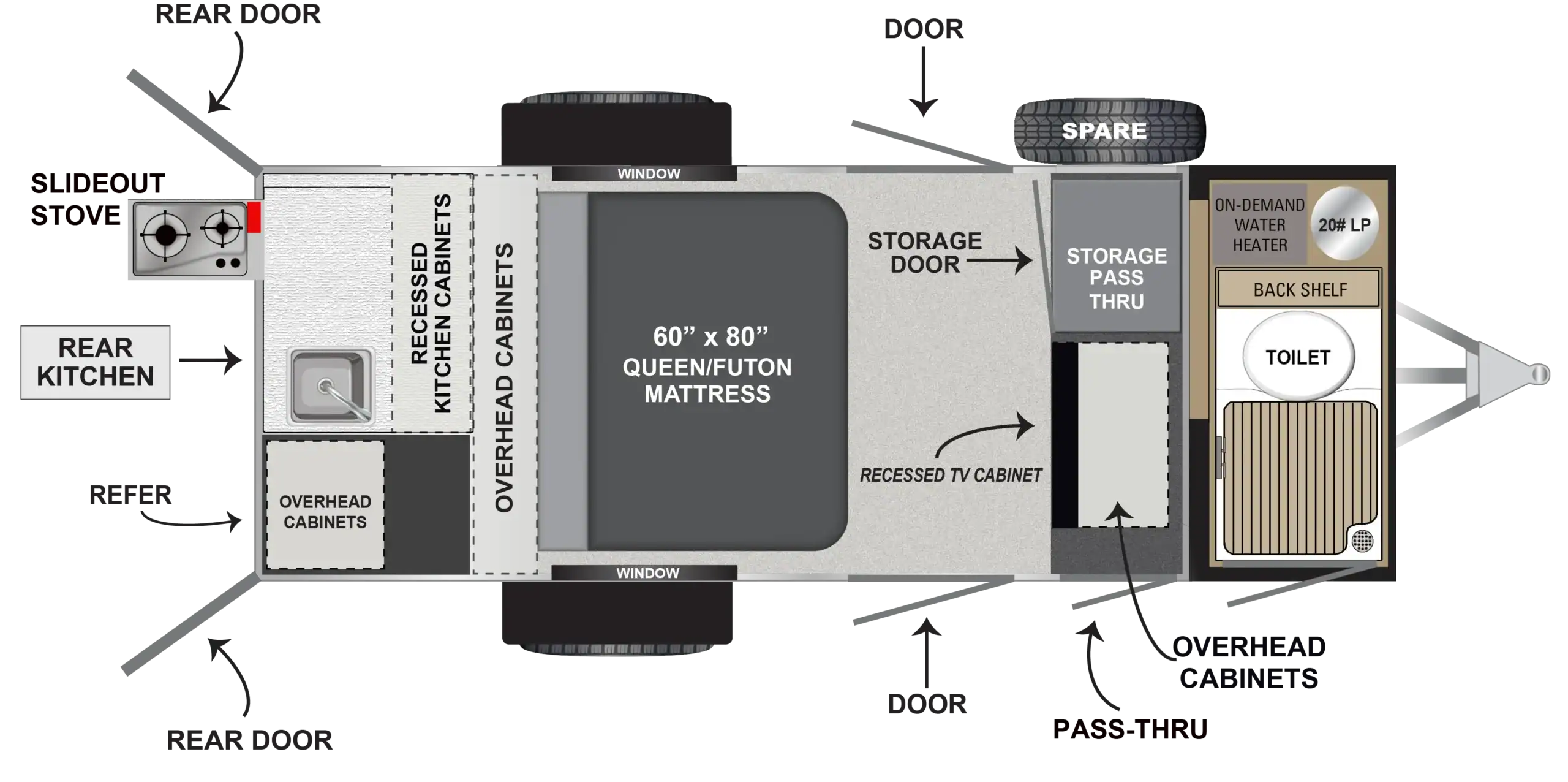

The layout tells the whole story at a glance: a front bathroom (the “FB” in the name) with the toilet and on-demand water heater up by the tongue, the convertible 60″ x 80″ queen/futon in the center surrounded by storage, and the full outdoor kitchen across the rear wall. It’s a tidy, purpose-built arrangement that gives a sub-18-foot trailer a bed, a bath, and a kitchen without feeling cramped.

Floor plan of the Encore RV ROG 12RK-FB showing the front bathroom, central queen futon, and rear kitchen
Image courtesy of Encore RV

Design Details

  • Builder: Encore RV (ROG / FÖG series)
  • Model: 12RK-FB (Front Bath, Rear Kitchen)
  • Length: 17′ 11-3/8″
  • Width: 7′ 11″ (fits a standard 7-foot garage)
  • Dry weight: 2,654 lbs
  • GVWR: 4,400 lbs
  • Fresh water: 43 gallons
  • Sleeping: 60″ x 80″ convertible queen futon
  • Construction: 100% wood-free Tri-Bond 360, all-aluminum chassis/frame/cabinets, one-piece Impact Guard roof
  • Water heater: 42,000 BTU on-demand
  • Furnace: 18,000 BTU ducted LP
  • Refrigerator: 3.3 cu. ft. 12V
  • Trim levels: Adventure Series and Survival Series
  • Base MSRP: $34,495

What Makes the 12RK-FB Special

  • A real stand-up bathroom in an off-road trailer. The hard-sided, deploy-in-seconds bathroom module is the standout feature and solves the single biggest compromise of small adventure trailers.
  • Garage-friendly and genuinely light. A sub-2,700-pound dry weight and 7’11” width make it easy to tow and easy to store at home.
  • Wood-free, all-aluminum build. Nothing in the structure to rot or delaminate — ideal for a trailer that lives outdoors and off-pavement.
  • Serious off-grid power. Scalable lithium-and-solar packages up to 400aH and 400 watts with a 3,000-watt inverter mean real boondocking range.
  • Smart convertible interior. The queen futon doubles your usable space, and the rear outdoor kitchen keeps cooking out of your sleeping quarters.

Learn More

Highlights

  • First adventure trailer of its kind with a fully integrated stand-up bathroom module
  • Compact 17’11” length that fits a standard 7-foot garage
  • Light 2,654 lb dry weight, 4,400 lb GVWR
  • 100% wood-free, all-aluminum construction
  • Rear outdoor kitchen with slide-out stove and 12V fridge
  • Convertible 60″ x 80″ queen futon living space
  • On-demand hot water and ducted LP furnace
  • Scalable lithium + solar power packages
  • Base MSRP around $34,495
